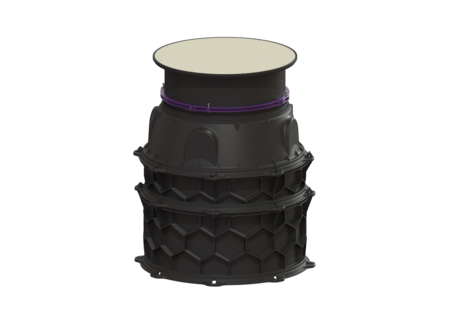

Chamber module LW 1000 ground

Access LW 800, 2375-2624 mm, Class K 3

PDF product data sheet

The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover.

  • For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
  • Innovative honeycomb structure
  • Installation in groundwater up to 3000 mm
  • Vertically adjustable upper section available in LW 600 and LW 800 from class K 3 to class D
  • ideal for scoring up to DN 150
  • lift-protected
Item no. 8740130
GTIN 4026092071663
Discount group 3

Chamber module LW 1000 ground Access LW 800, 2375-2624 mm, Class K 3
The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. Version: Waterproof flange: without Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) General characteristics: Colour: black Standard: EN 13598-2 Approval: Z-42.1-527 Dimensions: Length: 1,200 mm Width: 1,200 mm Tank: Inlet max. scoring (DN): 150 mm Installation depth: 2,375 - 2,624 mm Groundwater resistant from lower edge of base section: 3,000 mm Clear width of tank (LW): 1,000 mm Clear width of entry (LW): 800 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Round cover plate Cover material: Stainless steel Load class: K 3 (EN 1253-1) Length: 960 mm Width: 960 mm Height: 19 mm Tightness: surface water resistant Surface: anti-slip Locking: screwed

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Joint for intermediate part 680125
Intermediate Part T-Chamber 250mm 680370
Intermediate Part T-Chamber 500mm 680371
T-Chamber connection pieces 680373
T-Chamber access steps 680376
Engineering Chamber access 800 mm 680430
Seal for channel passage 75 mm 850116
Seal for channel passage 110 mm 850117
Upper section with cover plate LW 800, Class K 3 8740181
  • NDOP (ATTR-304): 009-071
  • Country of origin (ATTR-322): DE
  • Length (ATTR-A6A): 1,200  MMT
  • Width (ATTR-A6B): 1,200  MMT
  • Volume (ATTR-320): 6.3  MTQ
  • Packaging dimension: length (ATTR-325): 2,400  MMT
  • Packaging dimension: width (ATTR-326): 1,200  MMT
  • Packaging dimension: height (ATTR-327): 2,200  MMT
  • Dimensions (ATTR-323): 2400X1200X2200MM
  • Number of packages (ATTR-321): 0
  • Waterproof flange (ATTR-166): without
  • Clear width of entry (LW) (ATTR-B13): 800  MMT
  • Clear width of tank (LW) (ATTR-B14): 1,000  MMT
  • Inlet max. scoring (DN) (ATTR-B1E): 150  MMT
  • Installation depth (ATTR-B2_VB): 2,375  MMT
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
  • Type of cover (ATTR-A21): Round cover plate
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Tightness (ATTR-A2C): surface water resistant
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): Stainless steel
  • Surface (ATTR-A2F): anti-slip
  • Length (ATTR-A2M): 960  MMT
  • Width (ATTR-A2N): 960  MMT
  • Height (ATTR-A2P): 19  MMT
  • Net weight (ATTR-A3A): 183.7  KGM
  • Gross weight (ATTR-A3B): 222.3  KGM
  • Colour (ATTR-102): black
  • Standard (ATTR-9): EN 13598-2
  • Approval (ATTR-A5): Z-42.1-527
  • External monitoring (ATTR-A8): SKZ
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Delivery state (ATTR-189): Partly for on-site assembly (access steps have been pre-mounted in the factory)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Engineering system bases
  • Product type (M-ATTR-003): Chamber module
  • Product family (M-ATTR-004): Engineering chamber
  • Product name (M-ATTR-005): Engineering chamber
