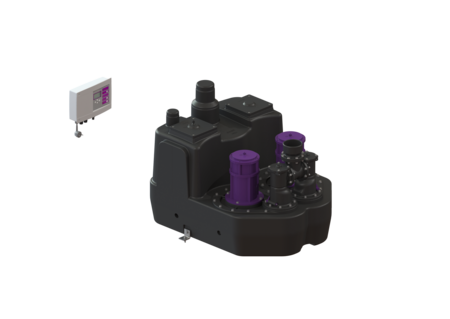

KESSEL lifting station Aqualift F XL 200 l for type of wastewater wastewater with sewage, with 2 pump/s SPF 1400, Multi-vane impeller, Twin pump station, for free-standing set-up, level measurement Immersion pipe, without shut-off valve

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11085
GTIN 4026092057520
Discount group 5

Lifting stati. Aqualift F XL 200l Duo, SPF 1400-S1
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. The station is controlled by a user-friendly control unit, which can be optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages can be output via a GSM interface (Comfort control unit). Version: Shut-off valve: without shut-off valve Type of system: Twin pump station Pump control: Control unit Backflow preventer: integrated Sound absorption mat: yes Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Installation situation: free-standing set-up Type of wastewater: wastewater with sewage General characteristics: Colour: black Standard: EN 12050-1 Dimensions: Length: 980 mm Width: 760 mm Height: 788 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet max. scoring (DN): 200 mm Connection for manual diaphragm pump (DN): 32 Tank volume: 200 l Pressure pipe connection: vertical Pressure pipe connection (DN): 100 mm Pressure pipe connection (OD): 110 mm Venting connection (DN): 70 mm Pumping volume: 120 l Pumping device: Pump: SPF 1400 Number of pumps: 2 Max. pumping capacity: 38 m3/h Max. pumping height: 7 m Operating mode: S1 Power P1: 1.6 kW Power P2: 1.1 kW Speed: 1,420 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 28 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 7.3 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 3G 1.5 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.99 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Type of fuse required (electrical protection): C 16 A Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe Alarm sensor: Immersion pipe
