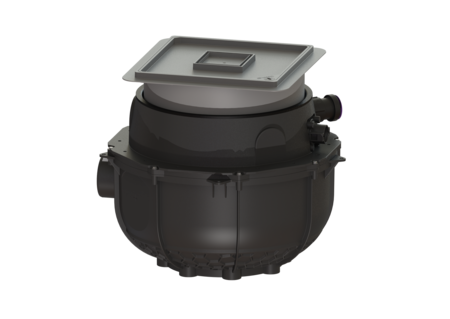

Lifting station Aqualift S Compact

Mono, GTF 1200, res., Floor slab, tile.

PDF product data sheet

The ready to plug in lifting station for faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. The station is controlled optionally by a float switch (Mono) or a user-friendly control unit (Tronic and Duo), which are optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages can be output via a GSM interface. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - collection tank made of PE, resistant to aggressive wastewater and 3 m groundwater - including backflow preventer for the pressure pipe - including sockets for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability

  • System ready to plug in
  • Easy retrofitting from Mono to Duo possible
  • Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
Item no. 281200XC
GTIN 4026092093702
Discount group 5

Lifting station Aqualift S Compact Mono, GTF 1200, res., Floor slab, tile.
The ready to plug in lifting station for faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. The station is controlled optionally by a float switch (Mono) or a user-friendly control unit (Tronic and Duo), which are optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages can be output via a GSM interface. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - collection tank made of PE, resistant to aggressive wastewater and 3 m groundwater - including backflow preventer for the pressure pipe - including sockets for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability Version: Type of system: Single station Pump control: Float switch Backflow preventer: integrated Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: floor slab installation Type of wastewater: wastewater without sewage General characteristics: Colour: black Standard: EN 12050-2 Dimensions: Length: 617 mm Width: 585 mm Tank: Inlet nominal size (DN): 100 mm Tank volume: 65 l Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 490 - 620 mm Pumping volume: 16 l Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: tileable cover plate Cover material: Polymer Colour of cover: silver grey Drainage function: yes Max. flooring height: 16 mm Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Locking: Lock & Lift Free passage: 30 mm Pumping device: Number of pumps: 1 Max. pumping capacity: 15.5 m3/h Max. pumping height: 9 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 10 % Power P1: 1.4 kW Power P2: 0.84 kW Speed: 2,650 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 10 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 6.2 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Insulation class: F Control: Motor protection switch: yes Type of level measurement: mechanical Level measurement instrument: Float switch

Video

  Title Item no.
  Title Item no.
  Title Item no.
Adapter DN 50/70 27126
Adapter DN 100/70 27602
Pressure pipe set 5 m pressure hose, DA 40 mm 28040
Pressure pipe set with 5 m pressure hose, DA 50 mm 28062
Adapter for pressure connection PE DA40 28086
Inlet socket DN 50, with seal, Threaded ring 39005
Inlet socket DN 70, with seal, Threaded ring 39007
Inlet socket DN 100, with seal, Threaded ring 39100
Odour trap Multistop, System 125 48500
Odour trap Megastop 48550
Hair filter Polymer, for System 125 bathroom drains 48700
Hole saw for DN 50/70/100 500101
Odour trap for The Ultraflat 79 680696
Drain body for cover plate for odour trap 50 mm, black 680795
Drain body for cover plate for Multistop, black 680796
Drain body for cover plate for odour trap 50 mm, grey 680797
Drain body for cover plate for Multistop, grey 680798
10 m probe cable extension set 80889
Cable prolongation set for pump 10 m 80891
Cover, watertight, black 830050
Cover, watertight, tile-over 830052
Extension section H: 200 mm 83070
Extension section H: 234 mm, with flange and counter-flange 83073
Extension section H: 360 mm, with central flange 83075
Waterproof concrete install. kit OD: 40 mm, for building contractors 83077
Seal for pipe penetration, DN 50 850114
Seal for channel passage 75 mm 850116
Seal for channel passage 110 mm 850117
  Title Item no.
Inlet socket DN 50, with seal, Threaded ring 39005
Locking key for Ecoguss slotted gratings, Lock & Lift 67007
Plug 680018
Joint for intermediate part 680150
Cover tileable, Lock & Lift, ABS 680224
Pump connection with seal and flap 680475
Release key for Lock & Lift 680702
Pressure pipe connection with seal and screws 680758
Pump connection Minilift, Aqualift S 680760
Flap housing Mono, with pump connector 680761
Turn fastener for pump connection lock 680762
Pump hanger for Aqualift S Compact, Mono, GTF 1200 680772
Replacement pump GTF 1200 res., float switch, for Aqualift S Compact 680953
Staufix sealing gasket cover plate 686114
KESSEL cover pl, tileable drainage funct 830054
Upper section System 400 830065
  • External monitoring (ATTR-A8): LGA
  • Free passage (ATTR-180): 30  MMT
  • TÜV test mark (ATTR-376): ID 1111241937
  • Country of origin (ATTR-322): DE
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 900  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4):
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S3 - 10 %
  • Power P1 (ATTR-F4): 1.4  KWT
  • Power P2 (ATTR-F5): 0.8  KWT
  • Speed (ATTR-F2): 2,650  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 6.2  AMP
  • Max. pumping capacity (ATTR-F7): 15.5  MQH
  • Max. pumping height (ATTR-F8): 9  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Weight (ATTR-191): 10  KGM
  • Insulation class (ATTR-193): F
  • Net weight (ATTR-A3A): 17.5  KGM
  • Gross weight (ATTR-A3B): 20.7  KGM
  • Type of system (ATTR-2): Single station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Float switch
  • Resistant (ATTR-338): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
  • Type of cover (ATTR-A21): tileable cover plate
  • Colour of cover (ATTR-A2A): silver grey
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Drainage function (ATTR-A2H): yes
  • Max. flooring height (ATTR-A2L): 16  MMT
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Installation depth (ATTR-B2_VB): 490  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 32  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 40  MMT
  • Tank volume (ATTR-B9): 65  LTR
  • Pumping volume (ATTR-B10): 16  LTR
  • Length (ATTR-A6A): 617  MMT
  • Width (ATTR-A6B): 585  MMT
  • Volume (ATTR-320): 0.2  MTQ
  • Packaging dimension: length (ATTR-325): 590  MMT
  • Packaging dimension: width (ATTR-326): 590  MMT
  • Packaging dimension: height (ATTR-327): 675  MMT
  • Dimensions (ATTR-323): 590X590X675MM
  • Number of packages (ATTR-321): 0
  • Type of level measurement (ATTR-7A): mechanical
  • Level measurement instrument (ATTR-7B): Float switch
  • Motor protection switch (ATTR-172): yes
  • Installation situation (ATTR-1): floor slab installation
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Declaration of Performance (DOP) (ATTR-292): 009-085
  • Wastewater quantity (ATTR-310): Medium
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Declaration of conformity (ATTR-303): 009-076
  • Colour (ATTR-102): black
  • Standard (ATTR-9): EN 12050-2
  • CE marking (ATTR-A5B): yes
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Aqualift S
  • Product name (M-ATTR-005): Aqualift S Compact
  • Start-up current (ATTR-285): 14.9  AMP
