Lifting station Aqualift F Compact
Duo, SPZ 1000-S3, resist., Free-standing
PDF product data sheet

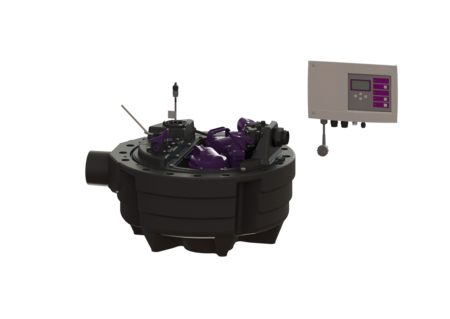

The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface.
- Suitable for complete basement drainage
- Integrated drainage function when installed in the floor slab
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 28718C |
|---|---|
| GTIN | 4026092093696 |
| Price group | 20 |
Lifting station Aqualift F Compact Duo, SPZ 1000-S3, resist., Free-standing
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface. Type of wastewater: wastewater with sewage Installation situation: free-standing set-up Version: Type of system: Twin pump station Shut-off valve: without shut-off valve Pump control: Control unit Backflow preventer: integrated Sound absorption mat: yes Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) General characteristics: Colour: black Approval: Z-53.2-484 Dimensions: Length: 670 mm Width: 580 mm Height: 395 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 100 Inlet nominal size (OD): 110 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of outlet pipe to tank bottom: 350 mm Distance from centre of inlet pipe to tank bottom: 207 mm Tank volume: 40 l Pumping volume: 20 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Venting connection (DN): 70 mm Coverage features: Type of cover: - Pumping device: Number of pumps: 2 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): Fuse protection through control unit 230 V Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Insulation class: F Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Type of fuse required (electrical protection): C 16 A Motor protection switch: yes Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe Alarm sensor: optical probe
Installation Video
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Adapter DN 50/70 | 27126 | |
|
Adapter DN 100/70 | 27602 | |
|
Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | |
|
|
Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | |
|
Adapter for pressure connection PE DA40 | 28086 | |
|
Odour trap Multistop, System 125 | 48500 | |
|
Odour trap Megastop | 48550 | |
|
Hair filter Polymer, for System 125 bathroom drains | 48700 | |
|
Odour trap for The Ultraflat 79 | 680696 | |
|
Drain body for cover plate for odour trap 50 mm, black | 680795 | |
|
Drain body for cover plate for Multistop, black | 680796 | |
|
Drain body for cover plate for odour trap 50 mm, grey | 680797 | |
|
Drain body for cover plate for Multistop, grey | 680798 | |
|
Cover plate water tight, black | 83050 | |
|
Cover plate water tight | 83052 | |
|
Extension section H: 200 mm | 83070 | |
|
Extension section H: 234 mm, with flange and counter-flange | 83073 | |
|
Extension section H: 360 mm, with central flange | 83075 | |
|
Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 |
| Title | Item no. | ||
|---|---|---|---|
|
Splash guard set for optical probe | 28706 | |
|
Cover Pump Opening KTP 1000 | 28732 | |
|
KESSEL Pump plate | 28733 | |
|
Set connection piece submersible pipe | 28734 | |
|
Control unit Aqualift Comfort 230 V Duo | 28746 | |
|
One-handed closure for backflow preventer | 680018 | |
|
Battery 9 V block | 680034 | |
|
Pump connection for pumping stations, up to 12/2015 | 680065 | |
|
Seal for pressure pipe connection | 680067 | |
|
Turn fastener for pumps | 680070 | |
|
Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | |
|
Cover with seal | 680076 | |
|
Bracket Pressure pipe connection | 680119 | |
|
Seal set Aqualift F Compact Duo | 680454 | |
|
Pump connection Aqualift F Compact, Duo, from 01/2016 | 680487 | |
|
Threaded connection for Aqualift F Compact | 680676 | |
|
Immersion pipe level measurement for Aqualift S Compact | 680776 | |
|
Replacement pump SPZ 1000 resistant | 680951 | |
|
Replacement set optical probe | 80888 | |
|
Adapter set optical probe | 80892 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Installation situation (ATTR-1):
free-standing set-up
- Country of origin (ATTR-322): DE
- - (ATTR-370):
- Area of application (ATTR-264): drainage
- Pump type (ATTR-265): Freestanding pump
- Pump shaft position (ATTR-266): vertical
- Pump design (ATTR-267): Dry rotor pump
- Pump hydraulics (ATTR-268): single stage
- Pump suction characteristic (ATTR-269): non-self-priming
- Pump drive (ATTR-270): E-motor for alternating current
- E-motor, type of startup (ATTR-271): direct
- Pump casing material (ATTR-272): Polymer
- Upper tolerance of the operating voltage (+) (ATTR-273): 10 PROZ
- Lower tolerance of the operating voltage (-) (ATTR-274): 10 PROZ
- Upper tolerance of the nominal frequency (+) (ATTR-275): 3 PROZ
- Lower tolerance of the nominal frequency (-) (ATTR-276): 2 PROZ
- Pump electrical connection (ATTR-277): 1/N/PE 230V
- Startup circuit for three-phase connection or three-phase current (ATTR-278):
- Motor pump shaft (ATTR-279): continuous
- Shaft seal (ATTR-280): RSSR
- Number of operating pumps (ATTR-281): 1
- Minimum pumped media temperature (ATTR-282): 0 CEL
- Maximum operating pressure (Pmax) (ATTR-283): 1,000 HPA
- Minimum speed for speed adjustment (ATTR-284): no speed adjustment
- Vertical installation (ATTR-286): yes
- Pump (ATTR-4):
- Number of pumps (ATTR-181): 2
- Impeller type (ATTR-8): Macerator
- Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
- Type of fuse required (electrical protection) (ATTR-N3): Fuse protection through control unit 230 V
- Max. permissible switching frequency (ATTR-162): 20 1PH
- Operating mode (ATTR-10): S3 - 50 %
- Power P1 (ATTR-F4): 1.2 KWT
- Power P2 (ATTR-F5): 0.7 KWT
- Speed (ATTR-F2): 2,800 UMIN
- Operating voltage (ATTR-131): 230 VLT
- Mains frequency (ATTR-N4): 50 HTZ
- Rated current (ATTR-N5): 5.2 AMP
- Max. pumping capacity (ATTR-F7): 11.5 MQH
- Max. pumping height (ATTR-F8): 10 MTR
- Max. temperature (permanent) of conveyed material (ATTR-132): 40 CEL
- Protection class (ATTR-133): I
- Connection type (ATTR-N1): coded plug
- Protection class (pump) (ATTR-125): IP 68
- Length of mains cable for pump (ATTR-11): 5 MTR
- Temperature monitoring (ATTR-135): integrated
- Weight (ATTR-191): 10 KGM
- Cos phi - power factor (ATTR-192): 1.0
- Insulation class (ATTR-193): F
- Expected service life (hours of operation) (ATTR-194): 5,000 HUR
- Expected service life (number of switching cycles) (ATTR-195): 150,000

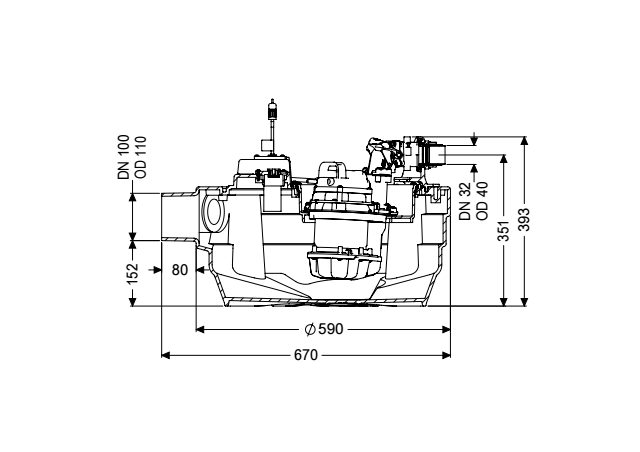

- Length (ATTR-A6A): 670 MMT
- Width (ATTR-A6B): 580 MMT
- Height (ATTR-A6C): 395 MMT
- Volume (ATTR-320): 0.2 MTQ
- Packaging dimension: length (ATTR-325): 620 MMT
- Packaging dimension: width (ATTR-326): 620 MMT
- Packaging dimension: height (ATTR-327): 515 MMT
- Dimensions (ATTR-323): 620X620X515MM
- Number of packages (ATTR-321): 1
- Shut-off valve (ATTR-A1): without shut-off valve
- Pressure pipe connection (ATTR-B7): horizontal
- Type of system (ATTR-2): Twin pump station
- Backflow preventer (ATTR-165): integrated
- Pump control (ATTR-134): Control unit
- Sound absorption mat (ATTR-185): yes
- Retaining bracket for the lift protection (ATTR-186): yes
- Resistant (ATTR-338): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
- Control unit (ATTR-S2):
Comfort
- Self-diagnosis system (SDS) (ATTR-S5): yes
- Battery buffering (ATTR-S6): yes
- Multi-line display (ATTR-S7): yes
- Log book function (ATTR-S8): yes
- USB interface (ATTR-S9): yes
- GSM interface (ATTR-S10): yes
- Potential-free contact (ATTR-S11): optional
- Length of mains cable for control unit (ATTR-S12): 1.4 MTR
- Operating voltage (ATTR-S13): 230 VLT
- Mains frequency (ATTR-S14): 50 HTZ
- Protection class control unit (ATTR-S4): IP 54
- Alarm sensor (ATTR-S1): optical probe
- Type of level measurement (ATTR-7A): pneumatic
- Level measurement instrument (ATTR-7B): Immersion pipe
- Type of fuse required (electrical protection) (ATTR-S17): C 16 A
- Motor protection switch (ATTR-172): yes
- - (ATTR-S21):
- - (ATTR-S22):
- - (ATTR-S23):
- Number of inlets (ATTR-B1B): 1 PCE
- Inlet nominal size (DN) (ATTR-B1CA): 100 MMT
- Inlet nominal size (OD) (ATTR-B1CB): 110 MMT
- Distance from centre of inlet pipe to tank bottom (ATTR-B6): 207 MMT
- Distance pipe bottom inlet to tank bottom (ATTR-B1D): 152 MMT
- Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 350 MMT
- Venting connection (DN) (ATTR-B4): 70 MMT
- Pressure pipe connection (DN) (ATTR-B17): 32 MMT
- Pressure pipe connection (OD) (ATTR-B18): 40 MMT
- Tank volume (ATTR-B9): 40 LTR
- Pumping volume (ATTR-B10): 20 LTR
- Type of cover (ATTR-A21): -
- Approval (ATTR-A5): Z-53.2-484
- Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
- Declaration of Performance (DOP) (ATTR-292): 009-064
- Wastewater quantity (ATTR-310):
Medium
- Type of wastewater (ATTR-6):
wastewater with sewage
- Declaration of conformity (ATTR-303): 009-064-D
- Colour (ATTR-102): black
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Lifting stations
- Product type (M-ATTR-003): Lifting station
- Product family (M-ATTR-004): Aqualift
- Product name (M-ATTR-005): Aqualift F Compact
- Start-up current (ATTR-285): 14.9 AMP
