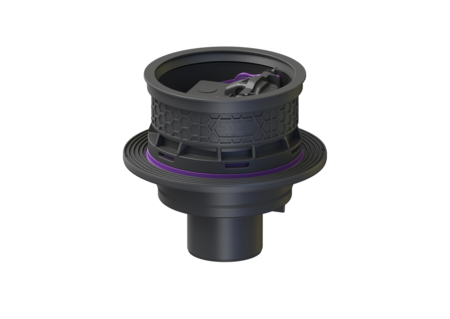

Universal Plus drain body
ver., odour trap, Waterproof concrete
PDF product data sheet
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable odour trap and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested).
| Item no. | 29102 |
|---|---|
| GTIN | 4026092096956 |
| Price group | 10 |
Universal Plus drain body ver., odour trap, Waterproof concrete
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable odour trap and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Type of wastewater: wastewater without sewage Installation situation: floor slab installation Version: Odour trap: included Sealing water height: 60 mm General characteristics: Nominal size (DN): 100 Colour: black Standard: EN 1253 Dimensions: Height: 270 mm Cutout dimension, length: 310 mm Cutout dimension, width: 310 mm Diameter: 295 mm Tank: Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Drain body: Socket version: vertical Vertical adjustment: vertically adjustable upper section Coverage features: Sludge bucket: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates |
- Function in the event of backwater (ATTR-312):
Protects in the event of backwater
- Wastewater quantity (ATTR-310):
Medium
- Overall height (ATTR-313):
min. 130 mm
- Product type (M-ATTR-003): Drain body basement drain
- Advantages text (M-ATTR-007): The basement drain with odour trap for more flexibility in new buildings, suitable for waterproof concrete
- Country of origin (ATTR-322): DE
- Sealing water height (ATTR-128): 60 MMT
- Net weight (ATTR-A3A): 2.4 KGM
- Gross weight (ATTR-A3B): 2.8 KGM
- Odour trap (ATTR-115): included
- Sludge bucket (ATTR-A2K): yes
- Waterproof flange (ATTR-166):
- Socket version (ATTR-233):
vertical
- Height (ATTR-A6C): 270 MMT
- Diameter (ATTR-107): 295 MMT
- Cutout dimension, length (ATTR-160): 310 MMT
- Cutout dimension, width (ATTR-161): 310 MMT
- Volume (ATTR-320): 0.0 MTQ
- Packaging dimension: length (ATTR-325): 344 MMT
- Packaging dimension: width (ATTR-326): 344 MMT
- Packaging dimension: height (ATTR-327): 353 MMT
- Dimensions (ATTR-323): 344X344X353MM
- Number of packages (ATTR-321): 1
- Outlet nominal size (DN) (ATTR-B15CA): 100
- Outlet nominal size (OD) (ATTR-B15CB): 110
- Colour (ATTR-102): black
- Type of wastewater (ATTR-6):
wastewater without sewage
- Standard (ATTR-9): EN 1253
- Installation situation (ATTR-1):
floor slab installation
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Nominal size (DN) (ATTR-118):
100
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Drains
- Product family (M-ATTR-004): Universal Plus
- Product name (M-ATTR-005): Universal Plus
