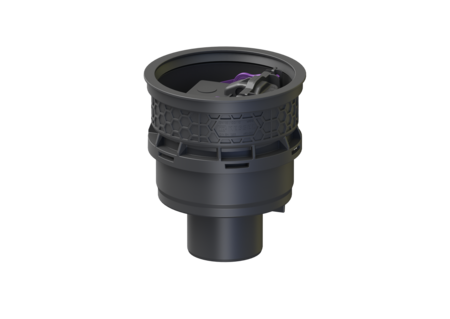

Universal Plus drain body

vertical, with odour trap

PDF product data sheet

In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable odour trap and a sludge bucket. Including temporary protective cover.

Item no. 29103
GTIN 4026092096963
Discount group 1

Universal Plus drain body vertical, with odour trap
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable odour trap and a sludge bucket. Including temporary protective cover. Version: Odour trap: included Sealing water height: 60 mm Installation situation: floor slab installation Type of wastewater: wastewater without sewage General characteristics: Nominal size (DN): 100 Colour: black Standard: EN 1253 Dimensions: Height: 270 mm Cutout dimension, length: 310 mm Cutout dimension, width: 310 mm Diameter: 235 mm Tank: Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Drain body: Socket version: vertical Vertical adjustment: vertically adjustable upper section Coverage features: Sludge bucket: yes
  Title Item no.
  Title Item no.
  Title Item no.
Extension section System 200, H: 175 mm 48988
  Title Item no.
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Wastewater quantity (ATTR-310): Medium
  • Overall height (ATTR-313): min. 130 mm
  • Product type (M-ATTR-003): Drain body basement drain
  • Advantages text (M-ATTR-007): The basement drain with odour trap for more flexibility in new buildings
  • Country of origin (ATTR-322): DE
  • Sealing water height (ATTR-128): 60  MMT
  • Net weight (ATTR-A3A): 1.7  KGM
  • Gross weight (ATTR-A3B): 2.2  KGM
  • Odour trap (ATTR-115): included
  • Sludge bucket (ATTR-A2K): yes
  • Socket version (ATTR-233): vertical
  • Height (ATTR-A6C): 270  MMT
  • Diameter (ATTR-107): 235  MMT
  • Cutout dimension, length (ATTR-160): 310  MMT
  • Cutout dimension, width (ATTR-161): 310  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 296  MMT
  • Packaging dimension: width (ATTR-326): 266  MMT
  • Packaging dimension: height (ATTR-327): 315  MMT
  • Dimensions (ATTR-323): 296X266X315MM
  • Number of packages (ATTR-321): 0
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Outlet nominal size (OD) (ATTR-B15CB): 110
  • Colour (ATTR-102): black
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Standard (ATTR-9): EN 1253
  • Installation situation (ATTR-1): floor slab installation
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Nominal size (DN) (ATTR-118): 100
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product family (M-ATTR-004): Universal Plus
  • Product name (M-ATTR-005): Universal Plus
