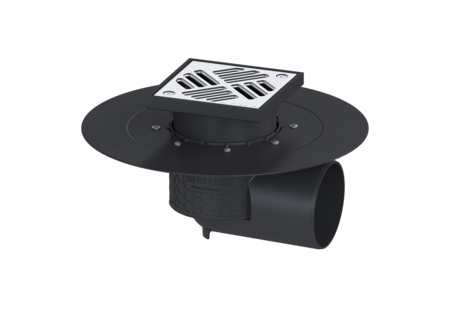

Ecoguss project drain glu. flange

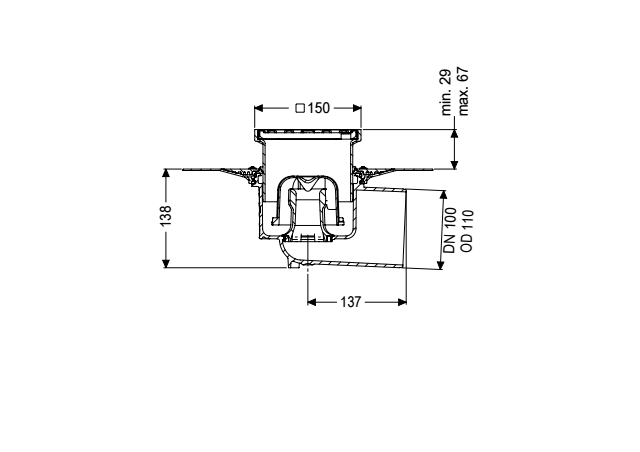

DN 100, horizontal, Slotted cover

PDF product data sheet

The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary.

  • High-tech Ecoguss composite material
  • Ecoguss, highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48511.11
GTIN 4026092032664
Discount group 1

Ecoguss project drain glu. flange DN 100, horizontal, Slotted cover
The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Standard: EN 1253-1 Dimensions: Length: 348 mm Width: 348 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Ecoguss Socket version: lateral Vertical adjustment: vertically adjustable upper section Upper section: vertically adjustable Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Colour of cover: silver Max. flooring height: 25 mm Load class: K 3 (EN 1253-1) Length: 138 mm Width: 138 mm Surface: polished Locking: screwed Grating: Rim length: 150 mm Rim width: 150 mm Rim material: ABS Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 10 mm backwater: 1 l/s Discharge rate (l/s) with 20 mm backwater: 1.6 l/s

Video

  Title Item no.
  Title Item no.
  Title Item no.
Extension section H: 140 mm, with glued flange 48403
Extension section H: 147 mm, with pressure sealing flange 48404
Extension section H: 120 mm, with glued flange 48900
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
  Title Item no.
Slotted cover 138x138 mm, SST 27154
Slotted cover 138x138 mm, screwed 27155
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Glued flange with mating flange, ABS, System 125 48410
Ecoguss drain body glued flange, DN 100, Horizontal outlet 48511
Upper section Slotted cover, 304 SST, 150 x 150 mm, K 3 48950
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Adhesive flange (suitable for moisture barriers)
  • Waterproofing layer on the upper section (ATTR-251): Connection flange
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): ABS
  • Rim length (ATTR-111B): 150  MMT
  • Rim width (ATTR-111C): 150  MMT
  • Outer diameter (OD) (ATTR-147): 110
  • Net weight (ATTR-A3A): 2.9  KGM
  • Gross weight (ATTR-A3B): 3.7  KGM
  • Standard (ATTR-9): EN 1253-1
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.6  LTS
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Upper section (ATTR-337): vertically adjustable
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1  LTS
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Socket version (ATTR-233): lateral
  • Type of cover (ATTR-A21): Slotted cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): polished
  • Max. flooring height (ATTR-A2L): 25  MMT
  • Length (ATTR-A2M): 138  MMT
  • Width (ATTR-A2N): 138  MMT
  • Diameter (ATTR-A107): 348  MMT
  • Length (ATTR-A6A): 348  MMT
  • Width (ATTR-A6B): 348  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 490  MMT
  • Packaging dimension: width (ATTR-326): 275  MMT
  • Packaging dimension: height (ATTR-327): 495  MMT
  • Dimensions (ATTR-323): 490X275X495MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Ecoguss
  • Sealing water height (ATTR-128): 50  MMT
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • NDOP (ATTR-304): 009-055
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Project drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
