Ecoguss project drain glu. flange

DN 70, horiz., Variofix, Design cover

PDF product data sheet

The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary.

  • High-tech Ecoguss composite material
  • Ecoguss, highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48578.53
GTIN 4026092054277
Discount group 1

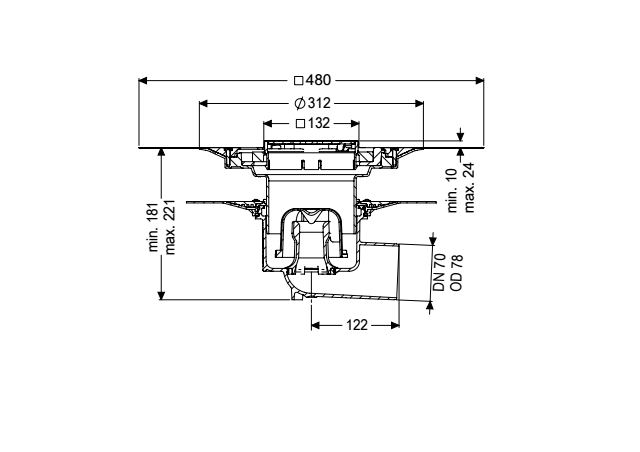

Ecoguss project drain glu. flange DN 70, horiz., Variofix, Design cover
The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm General characteristics: Nominal size (DN): 70 Outer diameter (OD): 78 Standard: EN 1253-1 Dimensions: Length: 348 mm Width: 348 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Ecoguss Socket version: lateral Vertical adjustment: vertically adjustable upper section Upper section: adjustable in three dimensions Coverage features: Type of cover: Design cover Grating design: Kessel Cover material: 304 stainless steel Colour of cover: silver Min. flooring height: 10 mm Max. flooring height: 24 mm Load class: L 15 (EN 1253-1) Length: 120 mm Width: 120 mm Surface: ground Locking: Lock & Lift Grating: Rim length: 132 mm Rim width: 132 mm Rim material: 304 stainless steel Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 10 mm backwater: 1,2 l/s Discharge rate (l/s) with 20 mm backwater: 1.5 l/s

Video

  Title Item no.
  Title Item no.
  Title Item no.
Extension section H: 140 mm, with glued flange 48403
Extension section H: 147 mm, with pressure sealing flange 48404
Extension section H: 120 mm, with glued flange 48900
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
  Title Item no.
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Glued flange with mating flange, ABS, System 125 48410
Ecoguss drain body glued flange, DN 70, Horizontal outlet 48578
Waterproofing membrane for joint sealing, liquid 48651
Variofix upper section Kessel design cover, 304 SST, Lock & Lift, L15 48904
  • Nominal size (DN) (ATTR-118): 70
  • Waterproofing layer on the drain body (ATTR-250): Adhesive flange (suitable for moisture barriers)
  • Waterproofing layer on the upper section (ATTR-251): Enclosed sealing collar to be glued (bd) according to DIN 18534
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): 304 stainless steel
  • Rim length (ATTR-111B): 132  MMT
  • Rim width (ATTR-111C): 132  MMT
  • Outer diameter (OD) (ATTR-147): 78
  • Net weight (ATTR-A3A): 2.8  KGM
  • Gross weight (ATTR-A3B): 3.7  KGM
  • Standard (ATTR-9): EN 1253-1
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.5  LTS
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Upper section (ATTR-337): adjustable in three dimensions
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1,2  LTS
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Socket version (ATTR-233): lateral
  • Grating design (ATTR-112): Kessel
  • Type of cover (ATTR-A21): Design cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): ground
  • Max. flooring height (ATTR-A2L): 24  MMT
  • Length (ATTR-A2M): 120  MMT
  • Width (ATTR-A2N): 120  MMT
  • Diameter (ATTR-A107): 348  MMT
  • Min. flooring height (ATTR-A2O): 10  MMT
  • - (ATTR-371):
  • Length (ATTR-A6A): 348  MMT
  • Width (ATTR-A6B): 348  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 586  MMT
  • Packaging dimension: width (ATTR-326): 386  MMT
  • Packaging dimension: height (ATTR-327): 400  MMT
  • Dimensions (ATTR-323): 586X386X400MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Ecoguss
  • Sealing water height (ATTR-128): 50  MMT
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • NDOP (ATTR-304): 009-055
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Project drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
