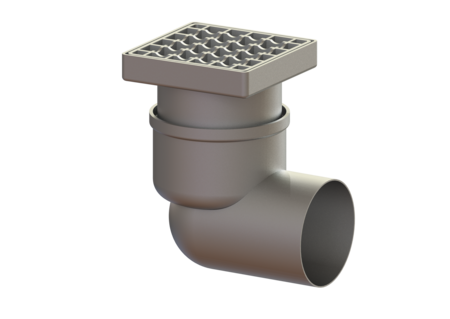

Ferrofix floor/roof drain
DN 100, horiz., Slotted grating, SST
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes.
- Made of particularly hygienic and mechanically highly resistant stainless steel
- High flow rate
Item no. | 54420.20 |
---|---|
GTIN | 4026092056455 |
Price group | 70 |
Ferrofix floor/roof drain DN 100, horiz., Slotted grating, SST
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 4,21 kg Gross weight: 4,56 kg Vertical adjustment: vertically adjustable upper section Width: 142 mm Length: 196 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Packaging dimension: length: 390 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Cover locking: unlocked Load class: L 15 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Upper section: vertically adjustable Upper section material: Stainless steel 14301 Odour trap: included
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
Extension section System 125, with pressure sealing flange | 54187 | Show | |
Extension section System 125, side inlet DN 50/40 | 54189 | Show | |
Extension section System 125, 304 stainless steel | 54900 | Show | |
Extension section System 125, with glued flange | 54901 | Show | |
Extension section System 125, Side inlet DN 50 | 54902 | Show | |
Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper): Stainless steel 14301
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): Stainless steel 14301
- System (stutzen_ausfuehrung): lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
