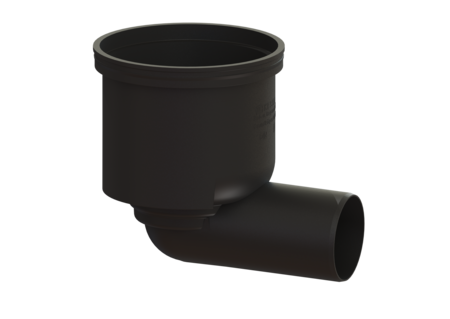

Drain body, yard/gutter drain

DN 100, Horizontal outlet

PDF product data sheet

The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap.

  • For easy underground installation
Item no. 67000
GTIN 4026092001585
Price group 10

Drain body, yard/gutter drain DN 100, Horizontal outlet
The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. Version: System: 200 Odour trap: no General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Dimensions: Length: 328 mm Width: 235 mm Height: 280 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Polymer Socket version: lateral Discharge rate (l/s) with 20 mm backwater: 4.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Nominal size (DN) (ATTR-118): 100
  • Outer diameter (OD) (ATTR-147): 110
  • - (ATTR-340):
  • Advantages text (M-ATTR-007): The basic element for easy underground installation
  • Country of origin (ATTR-322): DE
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 4.5  LTS
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Polymer
  • Socket version (ATTR-233): lateral
  • Odour trap (ATTR-115): no
  • System (ATTR-244): 200
  • Length (ATTR-A6A): 328  MMT
  • Width (ATTR-A6B): 235  MMT
  • Height (ATTR-A6C): 280  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 330  MMT
  • Packaging dimension: width (ATTR-326): 225  MMT
  • Packaging dimension: height (ATTR-327): 275  MMT
  • Dimensions (ATTR-323): 330X225X275MM
  • Number of packages (ATTR-321): 0
  • Net weight (ATTR-A3A): 1.2  KGM
  • Gross weight (ATTR-A3B): 1.2  KGM
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Drain body, yard/gutter drain
  • Product family (M-ATTR-004): Yard/gutter drain
  • Temperature class (ATTR-253): A
