Lifting station Aqualift F Compact
Mono, SPZ 1000-S3, Floor slab, black
PDF product data sheet
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface.
- Suitable for complete basement drainage
- Integrated drainage function when installed in the floor slab
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 28701S |
|---|---|
| GTIN | 4026092073063 |
| Price group | 20 |

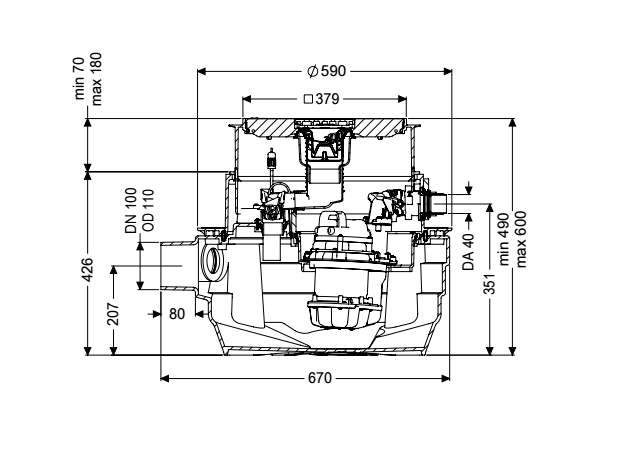

Lifting station Aqualift F Compact Mono, SPZ 1000-S3, Floor slab, black
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface. Type of wastewater: wastewater with sewage Installation situation: floor slab installation Version: Type of system: Single station Shut-off valve: without shut-off valve Odour trap: Multistop Type of waterproofing layer: Waterproofing layer Pump control: Control unit Backflow preventer: integrated Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) General characteristics: Colour: black Approval: Z-53.2-484 Dimensions: Length: 670 mm Width: 590 mm Cutout dimension, length: 800 mm Cutout dimension, width: 800 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 100 Inlet nominal size (OD): 110 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of outlet pipe to tank bottom: 351 mm Distance from centre of inlet pipe to tank bottom: 207 mm Connection conduit pipe (DN): 50 mm Tank volume: 40 l Pumping volume: 20 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 490 - 600 mm Venting connection (DN): 70 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Drainage function: yes Length: 366 mm Width: 366 mm Locking: Lock & Lift Pumping device: Pump: SPZ 1000 Number of pumps: 1 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Insulation class: F Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Type of fuse required (electrical protection): C 16 A Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe Alarm sensor: optical probe
