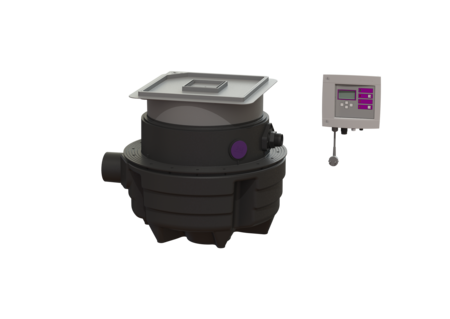

Lifting station Aqualift F Comp.

Mono, SPZ 1000-S3, Floor sl., tileable

The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components.

  • Suitable for complete basement drainage
  • Integrated drainage function when installed in the floor slab
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 28701X
GTIN 4026092093382
Price group 20

    Lifting station Aqualift F Comp. Mono, SPZ 1000-S3, Floor sl., tileable

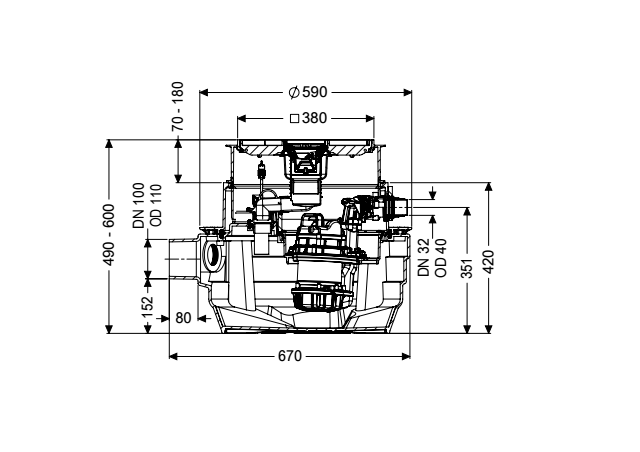

    The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Shut-off valve: without shut-off valve Rim width: Control unit Backwater protection: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Inlet max. scoring (DN): Z-53.2-484 System type: Mono Dimensions Net weight: 34,2 kg Gross weight: 36 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 800 mm Cutout dimension, length: 800 mm Installation depth: 490 - 600 mm Vertical adjustment: vertically adjustable upper section Width: 590 mm Length: 670 mm Packaging dimension: width: 620 mm Packaging dimension: height: 1030 mm Packaging dimension: length: 620 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 50 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 351 mm Distance pipe bottom outlet to tank bottom: 351 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Inlet type: 1 Pumping volume: 20 l Tank volume: 40 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Cover locking: Lock & Lift Max. flooring height: 16 mm Odour trap: Multistop Pumping device Pump control: SPZ 1000 Number of pumps: 1 Weight: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,97 Protection class control unit: IP 68 DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort Control unit function: With alarm message Warning equipment version: acoustic and optical signal
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/70 27126 Show
    Adapter DN 100/70 27602 Show
    Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
    Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Show
    Adapter for pressure connection PE DA40 28086 Show
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Hair filter Polymer, for System 125 bathroom drains 48700 Show
    Odour trap for The Ultraflat 79 680696 Show
    Drain body for cover plate for odour trap 50 mm, black 680795 Show
    Drain body for cover plate for Multistop, black 680796 Show
    Drain body for cover plate for odour trap 50 mm, grey 680797 Show
    Drain body for cover plate for Multistop, grey 680798 Show
    Cover plate water tight, black 83050 Show
    Cover plate water tight 83052 Show
    Extension section H: 200 mm 83070 Show
    Extension piece with flange&counterfl. 83073 Show
    Extension section H: 360 mm, with central flange 83075 Show
    Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Show
      Title Item no.
    KTP1000 cutting assembly replacement set 28075 Show
    Splash guard set for optical probe 28706 Show
    Control unit Comfort Mono 230V 28731 Show
    Cover Pump Opening KTP 1000 28732 Show
    KESSEL Pump plate 28733 Show
    Set connection piece submersible pipe 28734 Show
    Replacement pump for Aqualift F Compact 28739 Show
    Submersible pipe with horizontal outlet 28744 Show
    Odour trap Multistop, System 125 48500 Show
    One-handed closure for backflow preventer 680018 Show
    Battery 9 V block 680034 Show
    Pump connection for pumping stations, up to 12/2015 680065 Show
    Seal for pressure pipe connection 680067 Show
    Turn fastener for pumps 680070 Show
    Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F 680075 Show
    Cover with seal 680076 Show
    Seal for upper section, from 07/2014 680150 Show
    Cover tileable, Lock & Lift, ABS 680224 Show
    Seal set Aqualift F Compact Mono 680453 Show
    Pump connection Aqualift F Compact, Mono, from 01/2016 680486 Show
    Odour trap for The Ultraflat 79 680696 Show
    Seal for cover plate, System 330 mm 686114 Show
    Spare part set optical probe 80888 Show
    Adapter set optical probe 80892 Show
    Cover plate 366 x 366 mm high drain body, 50mm odour trap, tilea. 830055 Show
    Upper section System 400 830065 Show
    • Type of wastewater (abwasserart_de): with sewage
    • Max. permissible switching frequency (schaltgeraet): Comfort
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of cover (abdeckungsart): tileable cover plate
    • Pump control (pumpe): SPZ 1000
    • Installation depth (einbautiefe): 490  mm
    • Odour trap (geruchsverschluss): Multistop
    • (ausfuehrung):
