Ecoguss project drain, press. fl.

DN 80, horizontal, Design cover

PDF product data sheet

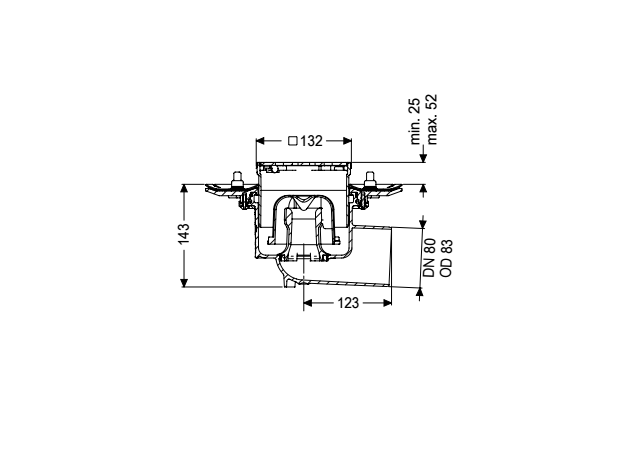

The Ecoguss project drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary.

  • Scientifically confirmed sound protection effect
  • Highest fire protection standards
Item no. 48783.63
GTIN 4026092033463
Discount group 1

Ecoguss project drain, press. fl. DN 80, horizontal, Design cover
The Ecoguss project drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Version: System: 125 Odour trap: included Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics: Nominal size (DN): 80 Outer diameter (OD): 83 Standard: EN 1253-1 Dimensions: Length: 273 mm Width: 273 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Ecoguss Socket version: lateral Vertical adjustment: vertically adjustable upper section Upper section: vertically adjustable Coverage features: Type of cover: Design cover Grating design: Kessel Cover material: 304 stainless steel Colour of cover: silver Max. flooring height: 16 mm Load class: L 15 (EN 1253-1) Length: 120 mm Width: 120 mm Surface: ground Locking: Lock & Lift Grating: Rim length: 132 mm Rim width: 132 mm Rim material: 304 stainless steel Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 10 mm backwater: 1,1 l/s Discharge rate (l/s) with 20 mm backwater: 1.4 l/s
  Title Item no.
  Title Item no.
  Title Item no.
Extension section H: 140 mm, with glued flange 48403
Extension section H: 147 mm, with pressure sealing flange 48404
Extension section H: 120 mm, with glued flange 48900
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
  Title Item no.
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Upper section Kessel design cover, 304 SST, Lock & Lift, L15 48201
Ecoguss pressure sealing flange System 125, incl. fixing clips 48407
Ecoguss drain body Press. fl., DN 80, Horizontal outlet 48783
Design cover Oval, Lock & Lift 680225
Design cover Kessel, Lock & Lift 680226
Design cover Cross, Lock & Lift 680235
Design cover Parade, Lock & Lift 680236
Design cover Festival, Lock & Lift 680237
Design cover Spot, Lock & Lift 680238
Design cover Slot, Lock & Lift 680239
Design cover Sticks, Lock & Lift 680240
Release key for Lock & Lift 680702
  • Nominal size (DN) (ATTR-118): 80
  • Waterproofing layer on the drain body (ATTR-250): Press sealing flange (suitable for creating watertight seals)
  • Waterproofing layer on the upper section (ATTR-251): Connection flange
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): 304 stainless steel
  • Rim length (ATTR-111B): 132  MMT
  • Rim width (ATTR-111C): 132  MMT
  • Outer diameter (OD) (ATTR-147): 83
  • Net weight (ATTR-A3A): 2.6  KGM
  • Gross weight (ATTR-A3B): 3.0  KGM
  • Standard (ATTR-9): EN 1253-1
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.4  LTS
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Upper section (ATTR-337): vertically adjustable
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1,1  LTS
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Socket version (ATTR-233): lateral
  • Grating design (ATTR-112): Kessel
  • Type of cover (ATTR-A21): Design cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): ground
  • Max. flooring height (ATTR-A2L): 16  MMT
  • Length (ATTR-A2M): 120  MMT
  • Width (ATTR-A2N): 120  MMT
  • Diameter (ATTR-A107): 273  MMT
  • - (ATTR-371):
  • Length (ATTR-A6A): 273  MMT
  • Width (ATTR-A6B): 273  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 400  MMT
  • Packaging dimension: width (ATTR-326): 300  MMT
  • Packaging dimension: height (ATTR-327): 400  MMT
  • Dimensions (ATTR-323): 400X300X400MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Ecoguss
  • Sealing water height (ATTR-128): 50  MMT
  • NDOP (ATTR-304): 009-055
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Project drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
