Lifting station Aqualift F Compact

Duo, SPZ 1000-S3, Floor sl., tileable

PDF product data sheet

The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface.

  • Suitable for complete basement drainage
  • Integrated drainage function when installed in the floor slab
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 28704X
GTIN 4026092093399
Discount group 5

Lifting station Aqualift F Compact Duo, SPZ 1000-S3, Floor sl., tileable
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages that can be output via a GSM interface. Version: Shut-off valve: without shut-off valve Type of system: Twin pump station Odour trap: Multistop Type of waterproofing layer: Waterproofing layer Pump control: Control unit Backflow preventer: integrated Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Installation situation: floor slab installation Type of wastewater: wastewater with sewage General characteristics: Colour: black Approval: Z-53.2-484 Dimensions: Length: 670 mm Width: 590 mm Cutout dimension, length: 800 mm Cutout dimension, width: 800 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of outlet pipe to tank bottom: 351 mm Distance from centre of inlet pipe to tank bottom: 207 mm Connection conduit pipe (DN): 50 mm Tank volume: 40 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 490 - 600 mm Venting connection (DN): 70 mm Pumping volume: 20 l Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: tileable cover plate Cover material: Polymer Drainage function: yes Max. flooring height: 16 mm Length: 366 mm Width: 366 mm Locking: Lock & Lift Pumping device: Pump: SPZ 1000 Number of pumps: 2 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): Fuse protection through control unit 230 V Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Type of fuse required (electrical protection): C 16 A Motor protection switch: yes Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe Alarm sensor: optical probe

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Adapter DN 50/70 27126
Adapter DN 100/70 27602
Pressure pipe set 5 m pressure hose, DA 40 mm 28040
Pressure pipe set with 5 m pressure hose, DA 50 mm 28062
Adapter for pressure connection PE DA40 28086
Inlet socket DN 50, with seal, Threaded ring 39005
Inlet socket DN 70, with seal, Threaded ring 39007
Inlet socket DN 100, with seal, Threaded ring 39100
Odour trap Multistop, System 125 48500
Odour trap Megastop 48550
Hair filter Polymer, for System 125 bathroom drains 48700
Odour trap for The Ultraflat 79 680696
Drain body for cover plate for odour trap 50 mm, black 680795
Drain body for cover plate for Multistop, black 680796
Drain body for cover plate for odour trap 50 mm, grey 680797
Drain body for cover plate for Multistop, grey 680798
Cover plate water tight, black 83050
Cover plate water tight 83052
Extension section H: 200 mm 83070
Extension section H: 234 mm, with flange and counter-flange 83073
Extension section H: 360 mm, with central flange 83075
Waterproof concrete install. kit OD: 40 mm, for building contractors 83077
  Title Item no.
KTP1000 cutting assembly replacement set 28075
Splash guard set for optical probe 28706
Cover Pump Opening KTP 1000 28732
KESSEL Pump plate 28733
Set connection piece submersible pipe 28734
Replacement pump for Aqualift F Compact 28739
Submersible pipe with horizontal outlet 28744
Control unit Aqualift Comfort 230 V Duo 28746
Odour trap Multistop, System 125 48500
Plug 680018
Battery 9 Volt Block 680034
Coupling for Pump 680065
Joint 680067
Locking lever for pump 680070
Connection, rubber fitting, joint 680075
Joint, Cover 680076
Joint for intermediate part 680150
Cover tileable, Lock & Lift, ABS 680224
Gasket Set Duo beginning 01/2016 680454
Pump connection Aqualift F Comp duo 680487
Odour trap for The Ultraflat 79 680696
Staufix sealing gasket cover plate 686114
Replacement set optical probe 80888
Adapter set optical probe 80892
Cover plate 366 x 366 mm high drain body, 50mm odour trap, tilea. 830055
Upper section System 400 830065
  • Installation situation (ATTR-1): floor slab installation
  • Country of origin (ATTR-322): DE
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 1,000  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): SPZ 1000
  • Number of pumps (ATTR-181): 2
  • Impeller type (ATTR-8): Macerator
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): Fuse protection through control unit 230 V
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.2  KWT
  • Power P2 (ATTR-F5): 0.7  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 5.2  AMP
  • Max. pumping capacity (ATTR-F7): 11.5  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 10  KGM
  • Cos phi - power factor (ATTR-192): 1.0
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000

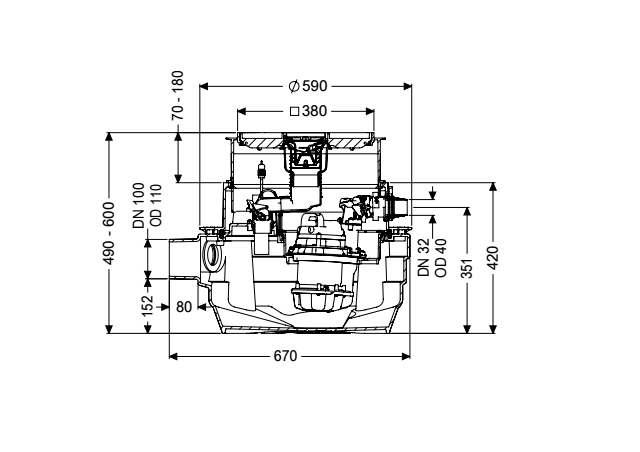

  • Installation depth (ATTR-B2_VB): 490  MMT
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Length (ATTR-A6A): 670  MMT
  • Width (ATTR-A6B): 590  MMT
  • Cutout dimension, length (ATTR-160): 800  MMT
  • Cutout dimension, width (ATTR-161): 800  MMT
  • Volume (ATTR-320): 0.4  MTQ
  • Packaging dimension: length (ATTR-325): 620  MMT
  • Packaging dimension: width (ATTR-326): 620  MMT
  • Packaging dimension: height (ATTR-327): 1,030  MMT
  • Dimensions (ATTR-323): 620X620X1030MM
  • Number of packages (ATTR-321): 0
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): Multistop
  • Shut-off valve (ATTR-A1): without shut-off valve
  • Pressure pipe connection (ATTR-B7): horizontal
  • Type of system (ATTR-2): Twin pump station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Control unit
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • USB interface (ATTR-S9): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): optional
  • Length of mains cable for control unit (ATTR-S12): 1.4  MTR
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): optical probe
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Immersion pipe
  • Type of fuse required (electrical protection) (ATTR-S17): C 16 A
  • Motor protection switch (ATTR-172): yes
  • - (ATTR-S21):
  • - (ATTR-S22):
  • - (ATTR-S23):
  • Number of inlets (ATTR-B1B): 1  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
  • Distance from centre of inlet pipe to tank bottom (ATTR-B6): 207  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 152  MMT
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 351  MMT
  • Connection conduit pipe (DN) (ATTR-B3): 50  MMT
  • Venting connection (DN) (ATTR-B4): 70  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 32  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 40  MMT
  • Tank volume (ATTR-B9): 40  LTR
  • Pumping volume (ATTR-B10): 20  LTR
  • Type of cover (ATTR-A21): tileable cover plate
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Drainage function (ATTR-A2H): yes
  • Max. flooring height (ATTR-A2L): 16  MMT
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Approval (ATTR-A5): Z-53.2-484
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Declaration of Performance (DOP) (ATTR-292): 009-064
  • Wastewater quantity (ATTR-310): Medium
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Declaration of conformity (ATTR-303): 009-064-D
  • Colour (ATTR-102): black
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift F Compact
  • Start-up current (ATTR-285): 14.9  AMP
