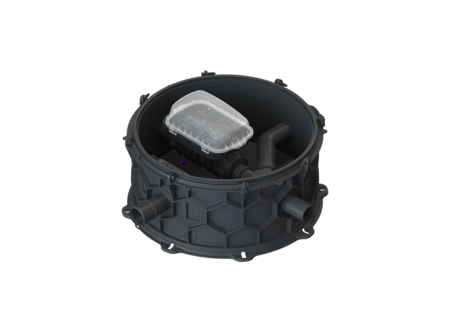

KESSEL Controlfix backwater technical module
DN 100, two inlets in the direction of flow
PDF product data sheet
The backwater technical module is equipped with an integrated clean out Controlfix and access steps. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station.
- Komfort: expensive living or useful space is not lost
- No system noises or unpleasant odours and soiling in the building
- Straightforward installation thanks to low weight of the combined engineering chamber modules and variable upper sections for adaptation to the ground level
- Simple conversion to Staufix SWA, Staufix FKA or Pumpfix F
| Item no. | 851003 |
|---|---|
| GTIN | 4026092079348 |
| Price group | 60 |
KESSEL Controlfix backwater technical module DN 100, two inlets in the direction of flow

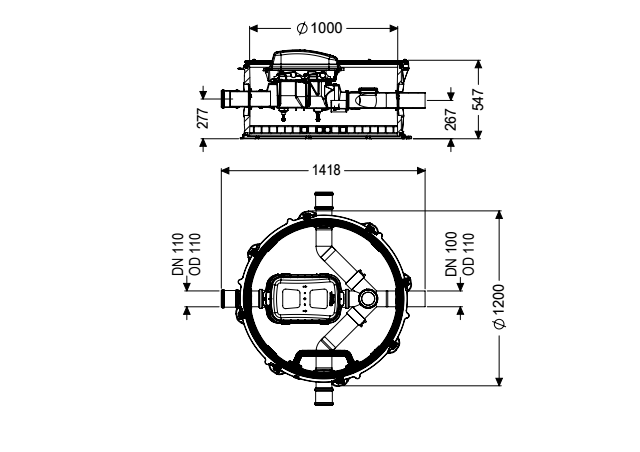

The backwater technical module is equipped with an integrated clean out Controlfix and access steps. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. Type of wastewater: wastewater with sewage Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) General characteristics: Colour: black Approval: Z-42.1-527 Dimensions: Width: 1,200 mm Height: 520 mm Tank: Number of inlets: 3 ST Inlet nominal size (DN): 100 Number of outlets: 1 ST Outlet nominal size (DN): 100 Distance from centre of outlet pipe to tank bottom: 267 mm Distance from centre of inlet pipe to tank bottom: 277 mm Tank width max.: 1,390 mm Channel: continuous channel with inlets in the direction of flow right and left 90 degrees Groundwater resistant from lower edge of base section: 3,000 mm Clear width of tank (LW): 1,000 mm Chamber system: modular chamber Vertical drop between inlet and outlet: 9 mm
| Title | Item no. | ||
|---|---|---|---|
|
Chamber module LW 1000 ground Access LW 800, 411-660 mm, Class K 3 | 8740002 | |
|
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 | 8740003 | |
|
Chamber module LW 1000 ground Access LW 800, 396-645 mm, Class A 15 | 8740004 | |
|
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 | 8740005 | |
|
Chamber module LW 1000 ground Access LW 800, 661-910 mm, Class K 3 | 8740008 | |
|
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 | 8740009 | |
|
Chamber module LW 1000 ground Access LW 800, 646-895 mm, Class A 15 | 8740010 | |
|
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 | 8740011 | |
|
Chamber module LW 1000 ground Access LW 800, 911-1160 mm, Class K 3 | 8740014 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 | 8740015 | |
|
Chamber module LW 1000 ground Access LW 800, 896-1145 mm, Class A 15 | 8740016 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 | 8740017 | |
|
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class A/B | 8740018 | |
|
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class D | 8740019 | |
|
Chamber module LW 1000 ground Access LW 800, 1161-1410 mm, Class K 3 | 8740020 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 | 8740021 | |
|
Chamber module LW 1000 ground Access LW 800, 1146-1395 mm, Class A 15 | 8740022 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 | 8740023 | |
|
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class A/B | 8740024 | |
|
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class D | 8740025 | |
|
Chamber module LW 1000 ground Access LW 800, 1411-1660 mm, Class K 3 | 8740026 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 | 8740027 | |
|
Chamber module LW 1000 ground Access LW 800, 1396-1645 mm, Class A 15 | 8740028 | |
|
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 | 8740029 | |
|
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class A/B | 8740030 | |
|
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class D | 8740031 | |
|
Chamber module LW 1000 ground Access LW 800, 1661-1910 mm, Class K 3 | 8740032 | |
|
Chamber module LW 1000 ground Access LW 800, 1646-1895 mm, Class A 15 | 8740034 | |
|
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class A/B | 8740036 | |
|
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class D | 8740037 | |
|
Chamber module LW 1000 ground Access LW 800, 1911-2160 mm, Class K 3 | 8740038 | |
|
Chamber module LW 1000 ground Access LW 800, 1896-2145 mm, Class A 15 | 8740040 | |
|
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class A/B | 8740042 | |
|
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class D | 8740043 | |
|
Chamber module LW 1000 ground Access LW 800, 2161-2410 mm, Class K 3 | 8740044 | |
|
Chamber module LW 1000 ground Access LW 800, 2146-2395 mm, Class A 15 | 8740046 | |
|
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class A/B | 8740048 | |
|
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class D | 8740049 | |
|
Chamber module LW 1000 ground Access LW 800, 2411-2660 mm, Class K 3 | 8740050 | |
|
Chamber module LW 1000 ground Access LW 800, 2396-2645 mm, Class A 15 | 8740052 | |
|
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class A/B | 8740054 | |
|
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class D | 8740055 | |
|
Chamber module LW 1000 ground Access LW 800, 2661-2910 mm, Class K 3 | 8740056 | |
|
Chamber module LW 1000 ground Access LW 800, 2646-2895 mm, Class A 15 | 8740058 | |
|
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class A/B | 8740060 | |
|
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class D | 8740061 | |
|
Chamber module LW 1000 ground Access LW 800, 2911-3160 mm, Class K 3 | 8740062 | |
|
Chamber module LW 1000 ground Access LW 800, 2896-3145 mm, Class A 15 | 8740064 | |
|
Chamber module LW 1000 ground Access LW 800, 375-624 mm, Class K 3 | 8740122 | |
|
Chamber module LW 1000 ground Access LW 800, 625-874 mm, Class K 3 | 8740123 | |
|
Chamber module LW 1000 ground Access LW 800, 875-1124 mm, Class K 3 | 8740124 | |
|
Chamber module LW 1000 ground Access LW 800, 1125-1374 mm, Class K 3 | 8740125 | |
|
Chamber module LW 1000 ground Access LW 800, 1375-1624 mm, Class K 3 | 8740126 | |
|
Chamber module LW 1000 ground Access LW 800, 1625-1874 mm, Class K 3 | 8740127 | |
|
Chamber module LW 1000 ground Access LW 800, 1875-2124 mm, Class K 3 | 8740128 | |
|
Chamber module LW 1000 ground Access LW 800, 2125-2374 mm, Class K 3 | 8740129 | |
|
Chamber module LW 1000 ground Access LW 800, 2375-2624 mm, Class K 3 | 8740130 | |
|
Chamber module LW 1000 ground Access LW 800, 2625-2874 mm, Class K 3 | 8740131 | |
|
Chamber module LW 1000 ground Access LW 800, 2875-3124 mm, Class K 3 | 8740132 | |
|
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class B | 8740141 | |
|
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class B | 8740142 | |
|
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class B | 8740143 | |
|
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class D | 8740158 | |
|
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class D | 8740159 | |
|
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class D | 8740160 |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Intermediate section 250 mm, for chamber module LW 1000 | 680370 | |
|
Intermediate section 500 mm, for chamber module LW 1000 | 680371 | |
|
Staufix SWA conversion kit DN 100-200, fr. 01/2011 | 80091 | |
|
Pumpfix F conversion kit DN 100-200, fr. 01/2012, 15 m cable | 80102 | |
|
Staufix FKA conversion kit DN 100-200, fr. 01/2012, 15 m cable | 80104 |
| Title | Item no. |
|---|
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval |
- Country of origin (ATTR-322): DE
- Net weight (ATTR-A3A): 64 KGM
- Gross weight (ATTR-A3B): 82 KGM
- Clear width of tank (LW) (ATTR-B14): 1,000 MMT
- Number of inlets (ATTR-B1B): 3 PCE
- Inlet nominal size (DN) (ATTR-B1CA): 100 MMT
- Distance from centre of inlet pipe to tank bottom (ATTR-B6): 277 MMT
- Number of outlets (ATTR-B15B): 1 PCE
- Outlet nominal size (DN) (ATTR-B15CA): 100
- Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 267 MMT
- Channel (ATTR-158): continuous channel with inlets in the direction of flow right and left 90 degrees
- Tank width max. (ATTR-B16): 1,390 MMT
- Chamber system (ATTR-B8): modular chamber
- Groundwater resistant from lower edge of base section (ATTR-B12): 3,000 MMT
- Width (ATTR-A6B): 1,200 MMT
- Height (ATTR-A6C): 520 MMT
- Volume (ATTR-320): 1.3 MTQ
- Packaging dimension: length (ATTR-325): 1,300 MMT
- Packaging dimension: width (ATTR-326): 1,300 MMT
- Packaging dimension: height (ATTR-327): 749 MMT
- Dimensions (ATTR-323): 1300X1300X720MM
- Number of packages (ATTR-321): 1
- Installation situation (ATTR-1):
underground installation
- Type of wastewater (ATTR-6):
wastewater with sewage
- Position relative to sewer (ATTR-309):
Gradient to the sewer
- Colour (ATTR-102): black
- Approval (ATTR-A5): Z-42.1-527
- Vertical drop between inlet and outlet (ATTR-176): 9 MMT
- Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Backwater valves
- Product type (M-ATTR-003): Backwater chamber
- Product family (M-ATTR-004): Komfort chamber
- Product name (M-ATTR-005): KESSEL Controlfix backwater technical module
