KESSEL Controlfix backwater technical module

DN 150, closed channel passage

PDF product data sheet

The backwater technical module is equipped with an integrated clean out Controlfix and access steps. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station.

  • Komfort: expensive living or useful space is not lost
  • No system noises or unpleasant odours and soiling in the building
  • Straightforward installation thanks to low weight of the combined engineering chamber modules and variable upper sections for adaptation to the ground level
  • Simple conversion to Staufix SWA, Staufix FKA or Pumpfix F
Item no. 851501
GTIN 4026092079393
Discount group 3

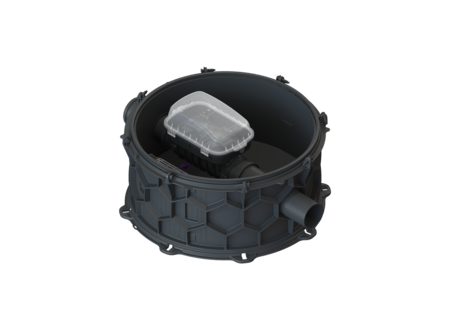

KESSEL Controlfix backwater technical module DN 150, closed channel passage

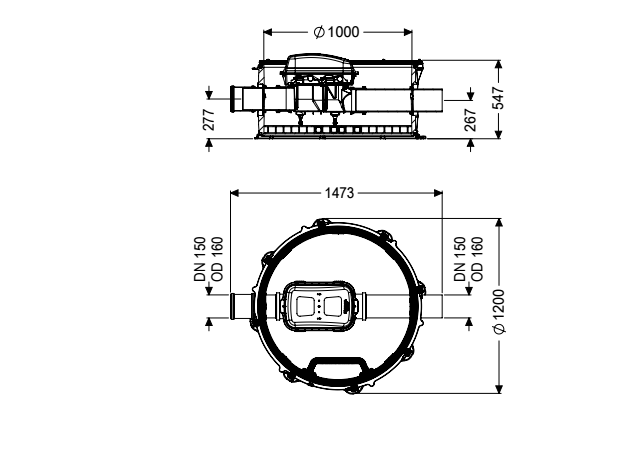

The backwater technical module is equipped with an integrated clean out Controlfix and access steps. Thanks to the modular KESSEL system, the clean out can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: underground installation Type of wastewater: wastewater with sewage General characteristics: Colour: black Approval: Z-42.1-527 Dimensions: Width: 1,200 mm Height: 520 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 150 mm Number of outlets: 1 ST Outlet nominal size (DN): 150 Distance from centre of outlet pipe to tank bottom: 267 mm Distance from centre of inlet pipe to tank bottom: 277 mm Tank width max.: 1,390 mm Channel: continuous channel Groundwater resistant from lower edge of base section: 3,000 mm Clear width of tank (LW): 1,000 mm Chamber system: modular chamber Vertical drop between inlet and outlet: 9 mm
  Title Item no.
Chamber module LW 1000 ground Access LW 800, 411-660 mm, Class K 3 8740002
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003
Chamber module LW 1000 ground Access LW 800, 396-645 mm, Class A 15 8740004
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005
Chamber module LW 1000 ground Access LW 800, 661-910 mm, Class K 3 8740008
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009
Chamber module LW 1000 ground Access LW 800, 646-895 mm, Class A 15 8740010
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011
Chamber module LW 1000 ground Access LW 800, 911-1160 mm, Class K 3 8740014
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015
Chamber module LW 1000 ground Access LW 800, 896-1145 mm, Class A 15 8740016
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class A/B 8740018
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class D 8740019
Chamber module LW 1000 ground Access LW 800, 1161-1410 mm, Class K 3 8740020
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021
Chamber module LW 1000 ground Access LW 800, 1146-1395 mm, Class A 15 8740022
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class A/B 8740024
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class D 8740025
Chamber module LW 1000 ground Access LW 800, 1411-1660 mm, Class K 3 8740026
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027
Chamber module LW 1000 ground Access LW 800, 1396-1645 mm, Class A 15 8740028
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class A/B 8740030
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class D 8740031
Chamber module LW 1000 ground Access LW 800, 1661-1910 mm, Class K 3 8740032
Chamber module LW 1000 ground Access LW 800, 1646-1895 mm, Class A 15 8740034
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class A/B 8740036
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class D 8740037
Chamber module LW 1000 ground Access LW 800, 1911-2160 mm, Class K 3 8740038
Chamber module LW 1000 ground Access LW 800, 1896-2145 mm, Class A 15 8740040
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class A/B 8740042
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class D 8740043
Chamber module LW 1000 ground Access LW 800, 2161-2410 mm, Class K 3 8740044
Chamber module LW 1000 ground Access LW 800, 2146-2395 mm, Class A 15 8740046
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class A/B 8740048
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class D 8740049
Chamber module LW 1000 ground Access LW 800, 2411-2660 mm, Class K 3 8740050
Chamber module LW 1000 ground Access LW 800, 2396-2645 mm, Class A 15 8740052
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class A/B 8740054
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class D 8740055
Chamber module LW 1000 ground Access LW 800, 2661-2910 mm, Class K 3 8740056
Chamber module LW 1000 ground Access LW 800, 2646-2895 mm, Class A 15 8740058
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class A/B 8740060
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class D 8740061
Chamber module LW 1000 ground Access LW 800, 2911-3160 mm, Class K 3 8740062
Chamber module LW 1000 ground Access LW 800, 2896-3145 mm, Class A 15 8740064
Chamber module LW 1000 ground Access LW 800, 375-624 mm, Class K 3 8740122
Chamber module LW 1000 ground Access LW 800, 625-874 mm, Class K 3 8740123
Chamber module LW 1000 ground Access LW 800, 875-1124 mm, Class K 3 8740124
Chamber module LW 1000 ground Access LW 800, 1125-1374 mm, Class K 3 8740125
Chamber module LW 1000 ground Access LW 800, 1375-1624 mm, Class K 3 8740126
Chamber module LW 1000 ground Access LW 800, 1625-1874 mm, Class K 3 8740127
Chamber module LW 1000 ground Access LW 800, 1875-2124 mm, Class K 3 8740128
Chamber module LW 1000 ground Access LW 800, 2125-2374 mm, Class K 3 8740129
Chamber module LW 1000 ground Access LW 800, 2375-2624 mm, Class K 3 8740130
Chamber module LW 1000 ground Access LW 800, 2625-2874 mm, Class K 3 8740131
Chamber module LW 1000 ground Access LW 800, 2875-3124 mm, Class K 3 8740132
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class B 8740141
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class B 8740142
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class B 8740143
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class D 8740158
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class D 8740159
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class D 8740160
  Title Item no.
  Title Item no.
Intermediate Part T-Chamber 250mm 680370
Intermediate Part T-Chamber 500mm 680371
Staufix SWA conversion kit DN 100-200, fr. 01/2011 80091
Pumpfix F conversion kit DN 100-200, fr. 01/2012, 15 m cable 80102
Staufix FKA conversion kit DN 100-200, fr. 01/2012, 15 m cable 80104
  Title Item no.
  • Net weight (ATTR-A3A): 64  KGM
  • Gross weight (ATTR-A3B): 82  KGM
  • Clear width of tank (LW) (ATTR-B14): 1,000  MMT
  • Number of inlets (ATTR-B1B): 1  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
  • Distance from centre of inlet pipe to tank bottom (ATTR-B6): 277  MMT
  • Number of outlets (ATTR-B15B): 1  PCE
  • Outlet nominal size (DN) (ATTR-B15CA): 150
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 267  MMT
  • Channel (ATTR-158): continuous channel
  • Tank width max. (ATTR-B16): 1,390  MMT
  • Chamber system (ATTR-B8): modular chamber
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
  • Width (ATTR-A6B): 1,200  MMT
  • Height (ATTR-A6C): 520  MMT
  • Volume (ATTR-320): 1.2  MTQ
  • Packaging dimension: length (ATTR-325): 1,300  MMT
  • Packaging dimension: width (ATTR-326): 1,300  MMT
  • Packaging dimension: height (ATTR-327): 723  MMT
  • Dimensions (ATTR-323): 1300X1300X720MM
  • Number of packages (ATTR-321): 0
  • Installation situation (ATTR-1): underground installation
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Colour (ATTR-102): black
  • Approval (ATTR-A5): Z-42.1-527
  • Vertical drop between inlet and outlet (ATTR-176): 9  MMT
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater chamber
  • Product family (M-ATTR-004): Komfort chamber
  • Product name (M-ATTR-005): KESSEL Controlfix backwater technical module
  • Country of origin (ATTR-322): DE
