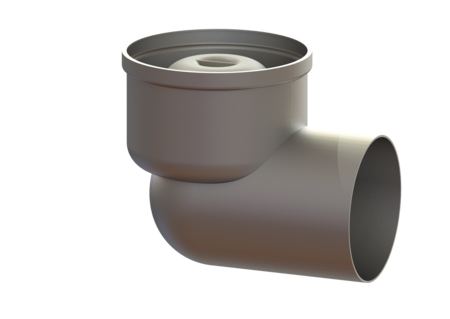

Ferrofix drain body

Sys 125, DN 100, Horizontal outlet

PDF product data sheet

In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes.

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 54420
GTIN 4026092053621
Discount group 3

Ferrofix drain body Sys 125, DN 100, Horizontal outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Version: System: 125 Odour trap: included Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Standard: EN 1253-1 Dimensions: Length: 196 mm Width: 142 mm Height: 165 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Stainless steel 14301 Socket version: lateral Discharge rate (l/s) with 10 mm backwater: 1.1 l/s Discharge rate (l/s) with 20 mm backwater: 1.8 l/s

Video

  Title Item no.
Ferrofix upper section Sys 125, with conn. socket DN 50, L 15 48435
Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907
Variofix upper section Slotted cover, 304 SST, K 3 48963
Variofix upper section Slotted grating, 304 SST, L 15 48965
Ferrofix upper section Sys 125, Slotted cover, 146 x 146 mm, K 3 48977
Ferrofix cleanout Sys 125, tileable, odour-tight 54910
Ferrofix cleanout Sys 125, Gl fl., tileable, odour-tight 54911
Ferrofix cleanout System 125, odour-tight 54912
Ferrofix cleanout Sys 125, Gl fl., odour-tight 54913
Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm 54914
Ferrofix upper section Sys 125, Gl fl., Slotted grating, 146x146 mm 54915
Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm 54916
Ferrofix upper section Sys 125, Gl fl., Slotted grating, 200x200 mm 54917
Ferrofix upper section Sys 125, Gl fl., Slotted cover, 146x146 mm 54919
Cleanout Sys 125, ABS, Cover plate 304 SST, screwed 54920
  Title Item no.
  Title Item no.
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
Extension section System 125, with pressure sealing flange 54187
Extension section System 125, side inlet DN 50/40 54189
Extension section System 125, 304 stainless steel 54900
Extension section System 125, with glued flange 54901
Extension section System 125, Side inlet DN 50 54902
Extension section System 125, horiz Inlet DN 50, Gl fl. 54903
  Title Item no.
Odour trap Ferrofix, Sealing water height 50 mm 54188
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Connection flange
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): no
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Type of drainage (ATTR-260): Point drain
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • TÜV test mark (ATTR-376): ID 1111244461
  • Advantages text (M-ATTR-007): The robust solution made of particularly hygienic and mechanically highly resistant stainless steel
  • Country of origin (ATTR-322): SI
  • Outer diameter (OD) (ATTR-147): 110
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.8  LTS
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1.1  LTS
  • Length (ATTR-A6A): 196  MMT
  • Width (ATTR-A6B): 142  MMT
  • Height (ATTR-A6C): 165  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 200  MMT
  • Packaging dimension: width (ATTR-326): 200  MMT
  • Packaging dimension: height (ATTR-327): 175  MMT
  • Dimensions (ATTR-323): 200X200X175MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Stainless steel 14301
  • Socket version (ATTR-233): lateral
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Net weight (ATTR-A3A): 1.2  KGM
  • Gross weight (ATTR-A3B): 1.3  KGM
  • Standard (ATTR-9): EN 1253-1
  • Sealing water height (ATTR-128): 50  MMT
  • NDOP (ATTR-304): 009-057
  • Wastewater quantity (ATTR-310): Medium
  • Overall height (ATTR-313): min. 130 mm
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Drain body
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
