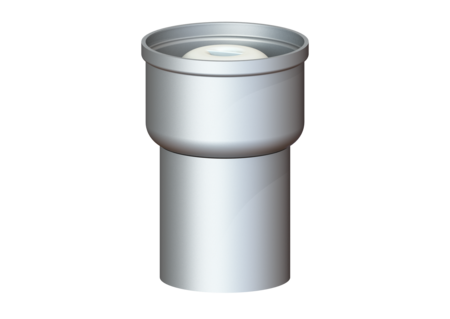

Ferrofix drain body
Sys 125, DN 100, Vertical outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes.
- Made of particularly hygienic and mechanically highly resistant stainless steel
- Variably combinable with upper sections
Item no. | 54430 |
---|---|
GTIN | 4026092053645 |
Price group | 70 |
Ferrofix drain body Sys 125, DN 100, Vertical outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Special feature short text: Dimensions Net weight: 1,12 kg Gross weight: 1,28 kg Width: 142 mm Height: 204 mm Length: 142 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Packaging dimension: length: 247 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 System: vertical Coverage features Odour trap: included
Title | Item no. | ||
---|---|---|---|
Ferrofix upper section Sys 125, with conn. socket DN 50, L 15 | 48435 | Show | |
Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 | 48907 | Show | |
Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show | |
Variofix upper section Slotted grating, 304 SST, L 15 | 48965 | Show | |
Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 | 48977 | Show | |
Ferrofix cleanout Sys 125, tileable, odour-tight | 54910 | Show | |
Ferrofix cleanout Sys 125, Gl fl., tileable, odour-tight | 54911 | Show | |
Ferrofix cleanout System 125, odour-tight | 54912 | Show | |
Ferrofix cleanout Sys 125, Gl fl., odour-tight | 54913 | Show | |
Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm | 54914 | Show | |
Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm | 54915 | Show | |
Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm | 54916 | Show | |
Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm | 54917 | Show | |
Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm | 54919 | Show | |
Cleanout Sys 25, ABS, Cover plate 304 SST, screw | 54920 | Show |
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show | |
Fire protection insert Fire-Kit 100, for DN 100 | 48100 | Show | |
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
Quick-Fit with fire protection insert | 48990 | Show | |
Extension section System 125, with pressure sealing flange | 54187 | Show | |
Extension section System 125, side inlet DN 50/40 | 54189 | Show | |
Extension section System 125, 304 stainless steel | 54900 | Show | |
Extension section System 125, with glued flange | 54901 | Show | |
Extension section System 125, Side inlet DN 50 | 54902 | Show | |
Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper): Stainless steel 14301
- TÜV test mark (pruefzeichen): ID 1111244461
- System (stutzen_ausfuehrung): vertical
- Odour trap (geruchsverschluss): included
