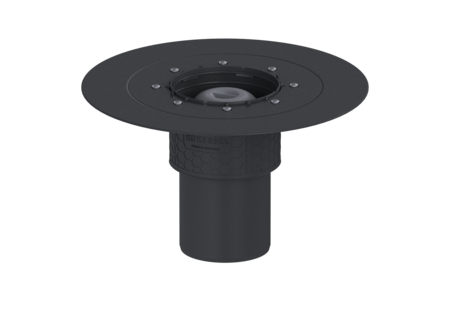

Ecoguss drain body

glued flange, DN 100, Vertical outlet

PDF product data sheet

The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary.

Item no. 48611
GTIN 4026092032596
Discount group 1

Ecoguss drain body glued flange, DN 100, Vertical outlet
The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Standard: EN 1253-1 Dimensions: Height: 215 mm Diameter: 348 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Ecoguss Socket version: vertical Fire protection: Highest fire protection standards are reached using the optionally available Fire-Kit and Quick-Fit: with a fire resistance class of R 30 - R 120 (general technical approval no. Z-19.17-1719, general design approval Z-19.53-2414)

Video

  Title Item no.
Upper section Slotted cover, 304 SST, 130 x 130 mm, K 3 48165
Upper section Black slotted cover , 150 x 150 mm, K 3 48193
Upper section Kessel design cover, 304 SST, Lock & Lift, L15 48201
Upper section Oval design cover, 304 SST, Lock & Lift, L 15 48202
Upper section Kessel design cover, 316 SST, Lock & Lift, L15 48203
Variofix upper section Kessel design cover, 316 SST, Lock&Lift, L 15 48204
Variofix upper section Slotted cover, 316 SST, K 3 48206
Upper section Slotted cover, 316 SST, 150 x 150 mm, K 3 48209
Upper section tileable, 304 SST, K 3 48211
Upper section Slot design cover, 304 SST, K 3 48218
Upper section Slot design cover, 304 SST, Lock & Lift, K 3 48219
Upper section Spot design cover, 304 SST, K 3 48220
Upper section Spot design cover, 304 SST, Lock & Lift, K 3 48221
Upper section Kessel design cover, 304 SST, L 15 48225
Upper section Oval design cover, 304 SST, L 15 48226
Upper section Oval design cover, 316 SST, Lock & Lift, L 15 48227
Upper section Oval design cover, 316 SST, L 15 48228
Variofix upper section Slot design cover, 304 SST, K 3 48618
Variofix upper section Slot design cover, 304 SST, Lock & Lift, K 3 48619
Variofix upper section Spot design cover, 304 SST, K 3 48620
Variofix upper section Spot design cover, 304 SST, Lock & Lift, K 3 48621
Variofix upper section Kessel design cover, 304 SST, L 15 48625
Variofix upper section Oval design cover, 304 SST, L 15 48626
Variofix upper section Oval design cover, 316 SST, Lock & Lift, L 15 48669
Variofix upper section Oval design cover, 316 SST, L 15 48670
Variofix upper section Kessel design cover, 304 SST, Lock & Lift, L15 48904
Variofix upper section Oval design cover, 304 SST, Lock & Lift, L 15 48905
Variofix upper section tileable, 304 SST, K 3 48906
Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M
Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M
Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M
Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M
Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M
Upper section Slotted cover, 304 SST, 150 x 150 mm, K 3 48950
Variofix upper section Slotted cover, 304 SST, K 3 48963
  Title Item no.
  Title Item no.
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099
Fire protection insert Fire-Kit 100, for DN 100 48100
Extension section H: 140 mm, with glued flange 48403
Extension section H: 147 mm, with pressure sealing flange 48404
Extension section H: 120 mm, with glued flange 48900
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
Quick-Fit pipe penetration seal for core drillholes, with fire protection 48990
  Title Item no.
  • Sealing water height (ATTR-128): 50  MMT
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Adhesive flange (suitable for moisture barriers)
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): no
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Type of drainage (ATTR-260): Point drain
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Outer diameter (OD) (ATTR-147): 110
  • Net weight (ATTR-A3A): 1.5  KGM
  • Gross weight (ATTR-A3B): 2.1  KGM
  • Standard (ATTR-9): EN 1253-1
  • External monitoring (ATTR-A8): LGA
  • Fire protection (ATTR-319): Highest fire protection standards are reached using the optionally available Fire-Kit and Quick-Fit: with a fire resistance class of R 30 - R 120 (general technical approval no. Z-19.17-1719, general design approval Z-19.53-2414)
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Socket version (ATTR-233): vertical
  • Height (ATTR-A6C): 215  MMT
  • Diameter (ATTR-107): 348  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 360  MMT
  • Packaging dimension: width (ATTR-326): 360  MMT
  • Packaging dimension: height (ATTR-327): 250  MMT
  • Dimensions (ATTR-323): 360X360X250MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Ecoguss
  • Wastewater quantity (ATTR-310): High
  • Overall height (ATTR-313): min. 130 mm
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drain technology
  • Product type (M-ATTR-003): Drain body
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss drain body
