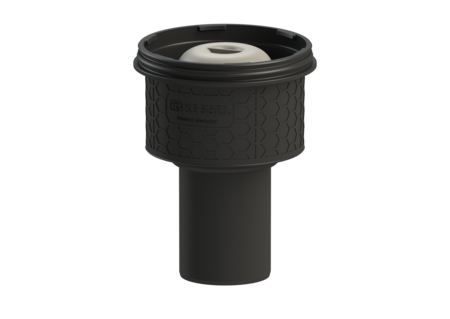

Ecoguss drain body
DN 70, Vertical outlet
KESSEL Ecoguss drain body, nominal size (DN) 70, socket vertical, drainage by Point drain, odour trap included, waterproofing layer drain body by Connection flange
- High-tech Ecoguss composite material
- Highest fire protection standards
- Scientifically confirmed sound protection effect
| Item no. | 48478 |
|---|---|
| GTIN | 4026092033296 |
| Price group | 40 |
Ecoguss drain body DN 70, Vertical outlet
The Ecoguss drain body, in combination with an upper section made of stainless steel, Ecoguss and recycled polymer, is used for point drainage and is equipped with a removable odour trap and a construction period protection cover. The recyclable composite material Ecoguss fulfils the highest sound insulation requirements, is permanently resistant to 350 aggressive media according to the resistance list, is temperature-resistant and has a permanently corrosion-free surface. It can be flame-treated for short periods from 100 to 400 degrees Celsius. The outlet nozzle is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Odour trap: included Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Dimensions Net weight: 0,93 kg Gross weight: 1,04 kg Diameter: 135 mm Height: 201 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss resistant Socket version: vertical
