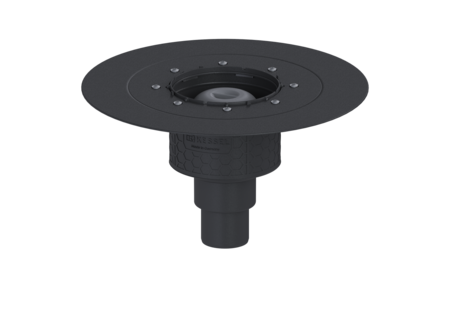

Ecoguss drain body

glued flange, DN 50, Vertical outlet

48658
48658
PDF product data sheet

KESSEL Ecoguss drain body, nominal size (DN) 50, socket vertical, drainage by Point drain, odour trap included, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48658
GTIN 4026092033333
Price group 40

    Ecoguss drain body glued flange, DN 50, Vertical outlet
    The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals and is therefore only suitable for use with moisture barriers. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 58 mm Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Odour trap: included Dimensions Net weight: 1,31 kg Gross weight: 1,9 kg Diameter: 348 mm Height: 205 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss resistant Socket version: vertical
      Title Item no.
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Show
    48194 Upper section Ecoguss Black slotted cover, 150 x 150 mm, K 3 48194 Show
    48502 Parking deck drain, Ecoguss DN 125, square, Connection polymer pipe 48502 Show
    48504 Parking deck drain, Ecoguss DN 125, round, Connection polymer pipe 48504 Show
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
    48965 Variofix upper section Slotted grating, 304 SST, L 15 48965 Show
    48977 Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 48977 Show
    54914 Extension section Sys 125, Slotted grating, 150 x 150 mm 54914 Show
    54915 Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm 54915 Show
    54916 Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm 54916 Show
    54917 Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm 54917 Show
    54919 Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm 54919 Show
    54921 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54921 Show
    54922 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54922 Show
    54923 Ferrofix upper section glue flan. H: 15mm,300x300mm,slot grat. 54923 Show
    54926 Ferrofix upper section w/o glue flange, 300x300mm, slot grat. 54926 Show
    54928 Ferrofix upper section glue flange H: 6mm,200x200mm,slot grat. 54928 Show
    54929 Ferrofix upper section glue flange H: 6mm,300x300mm,slot grat. 54929 Show
    59010 Ferrofix upper section Sys 125, glue fl, Hole pat cover, K3 59010 Show
    59165 Ferrofix upper section Sys 125, Gl fl., Slot cover, 100x100 mm 59165 Show
    59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Show
    59400 Ferrofix upper section Sys 125, Ladd grt, Class D 59400 Show
    6000100 Floor Tray Ferrofix glued flange H: 15mm, 1000x1000mm 6000100 Show
    6002100 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, middle 6002100 Show
    6002101 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, outer 6002101 Show
    6002141 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, outer 6002141 Show
    6002200 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, middle 6002200 Show
    6002201 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, outer 6002201 Show
    6002300 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, middle 6002300 Show
    6002301 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, outer 6002301 Show
    6002400 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, middle 6002400 Show
    6002401 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, outer 6002401 Show
    6015050 Box channel Ferrofix glued flange H: 15mm, 153x511mm 6015050 Show
    6015100 Box channel Ferrofix glued flange H: 15mm, 153x1011mm 6015100 Show
    6015150 Box channel Ferrofix glued flange H: 15mm, 156x1514mm 6015150 Show
    6015200 Box channel Ferrofix glued flange H: 15mm, 156 x 2014 mm 6015200 Show
    6015250 Box channel Ferrofix glued flange H: 15mm, 156 x 2514 mm 6015250 Show
    6015300 Box channel Ferrofix glued flange H: 15mm, 156 x 3014 mm 6015300 Show
    6020050 Box channel Ferrofix glued flange H: 15mm, 200x550mm 6020050 Show
    6020100 Box channel Ferrofix glued flange H: 15mm, 200x1050mm 6020100 Show
    6020150 Box channel Ferrofix glued flange H: 15mm, 200x1550mm 6020150 Show
    6020200 Box channel Ferrofix glued flange H: 15mm, 200x2050mm 6020200 Show
    6020250 Box channel Ferrofix glued flange H: 15mm, 200x2550mm 6020250 Show
    6020300 Box channel Ferrofix glued flange H: 15mm, 200x3050mm 6020300 Show
    6030050 Box channel Ferrofix glued flange H: 15mm, 300x550mm 6030050 Show
    6030100 Box channel Ferrofix glued flange H: 15mm, 300x1050mm 6030100 Show
    6030150 Box channel Ferrofix glued flange H: 15mm, 300x1550mm 6030150 Show
    6030200 Box channel Ferrofix glued flange H: 15mm, 300x2050mm 6030200 Show
    6030250 Box channel Ferrofix glued flange H: 15mm, 300x2550mm 6030250 Show
    6030300 Box channel Ferrofix glued flange H: 15mm, 300x3050mm 6030300 Show
    6035035 Floor Tray Ferrofix glued flange H: 15mm, 350x350mm 6035035 Show
    6040050 Box channel Ferrofix glued flange H: 15mm, 400x550mm 6040050 Show
    6040100 Box channel Ferrofix glued flange H: 15mm, 400x1050mm 6040100 Show
    6040150 Box channel Ferrofix glued flange H: 15mm, 400x1550mm 6040150 Show
    6040200 Box channel Ferrofix glued flange H: 15mm, 400x2050mm 6040200 Show
    6040250 Box channel Ferrofix glued flange H: 15mm, 400x2550mm 6040250 Show
    6040300 Box channel Ferrofix glued flange H: 15mm, 400x3050mm 6040300 Show
    6050050 Floor Tray Ferrofix glued flange H: 15mm, 500x500mm 6050050 Show
    6050100 Floor Tray Ferrofix glued flange H: 15mm, 500x1000mm 6050100 Show
    6060600 Floor Tray Ferrofix glued flange H: 15mm, 600x600mm 6060600 Show
    6080800 Floor Tray Ferrofix glued flange H: 15mm, 800x800mm 6080800 Show
    6200100 Floor Tray Ferrofix glued flange H: 6mm, 1000x1000mm 6200100 Show
    6202100 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, middle 6202100 Show
    6202101 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, outer 6202101 Show
    6202140 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, middle 6202140 Show
    6202141 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, outer 6202141 Show
    6202200 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, middle 6202200 Show
    6202201 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, outer 6202201 Show
    6202300 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, middle 6202300 Show
    6202301 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, outer 6202301 Show
    6202400 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, middle 6202400 Show
    6202401 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, outer 6202401 Show
    6220050 Box Channel Ferrofix glued flange H: 6mm, 200x550mm 6220050 Show
    6220100 Box Channel Ferrofix glued flange H: 6mm, 200x1050mm 6220100 Show
    6220150 Box Channel Ferrofix glued flange H: 6mm, 200x1550mm 6220150 Show
    6220200 Box Channel Ferrofix glued flange H: 6mm, 200x2050mm 6220200 Show
    6220250 Box Channel Ferrofix glued flange H: 6mm, 200x2550mm 6220250 Show
    6220300 Box Channel Ferrofix glued flange H: 6mm, 200x3050mm 6220300 Show
    6230050 Box Channel Ferrofix glued flange H: 6mm, 300x550mm 6230050 Show
    6230100 Box Channel Ferrofix glued flange H: 6mm, 300x1050mm 6230100 Show
    6230150 Box Channel Ferrofix glued flange H: 6mm, 300x1550mm 6230150 Show
    6230200 Box Channel Ferrofix glued flange H: 6mm, 300x2050mm 6230200 Show
    6230250 Box Channel Ferrofix glued flange H: 6mm, 300x2550mm 6230250 Show
    6230300 Box Channel Ferrofix glued flange H: 6mm, 300x3050mm 6230300 Show
    6235035 Floor Tray Ferrofix glued flange H: 6mm, 350x350mm 6235035 Show
    6240050 Box Channel Ferrofix glued flange H: 6mm, 400x550mm 6240050 Show
    6240100 Box Channel Ferrofix glued flange H: 6mm, 400x1050mm 6240100 Show
    6240150 Box Channel Ferrofix glued flange H: 6mm, 400x1550mm 6240150 Show
    6240200 Box Channel Ferrofix glued flange H: 6mm, 400x2050mm 6240200 Show
    6240250 Box Channel Ferrofix glued flange H: 6mm, 400x2550mm 6240250 Show
    6240300 Box Channel Ferrofix glued flange H: 6mm, 400x3050mm 6240300 Show
    6250050 Floor Tray Ferrofix glued flange H: 6mm, 500x500mm 6250050 Show
    6250100 Floor Tray Ferrofix glued flange H: 6mm, 500x1000mm 6250100 Show
    6260600 Floor Tray Ferrofix glued flange H: 6mm, 600x600mm 6260600 Show
    6280800 Floor Tray Ferrofix glued flange H: 6mm, 800x800mm 6280800 Show
      Title Item no.
      Title Item no.
    48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss): included
